140X140mm Copper Square Tube Sizes

Place of Origin : Luoyang,China

MOQ : 2 Pieces

Price : Negitionable

Payment Terms : L/C, D/A, T/T, D/P

Supply Ability : 30000 Piece/Pieces per Year

Delivery Time : 30work days

Packaging Details : Fumigation Treatment Wooden Case or customized

Model Number : R9-140X140mm

Certification : IOS

Name : COPPER MOULD TUBE

Material : CuCrZr

specification : R9-140X140mm

Yield per piece : ≥ 6000 Ton per casting tube

Cu(Min) : 99%

Application : Continuous Casting Machine

Ultimate Strength (≥ MPa) : 405

Wall Thickness : 10mm

Contact Now

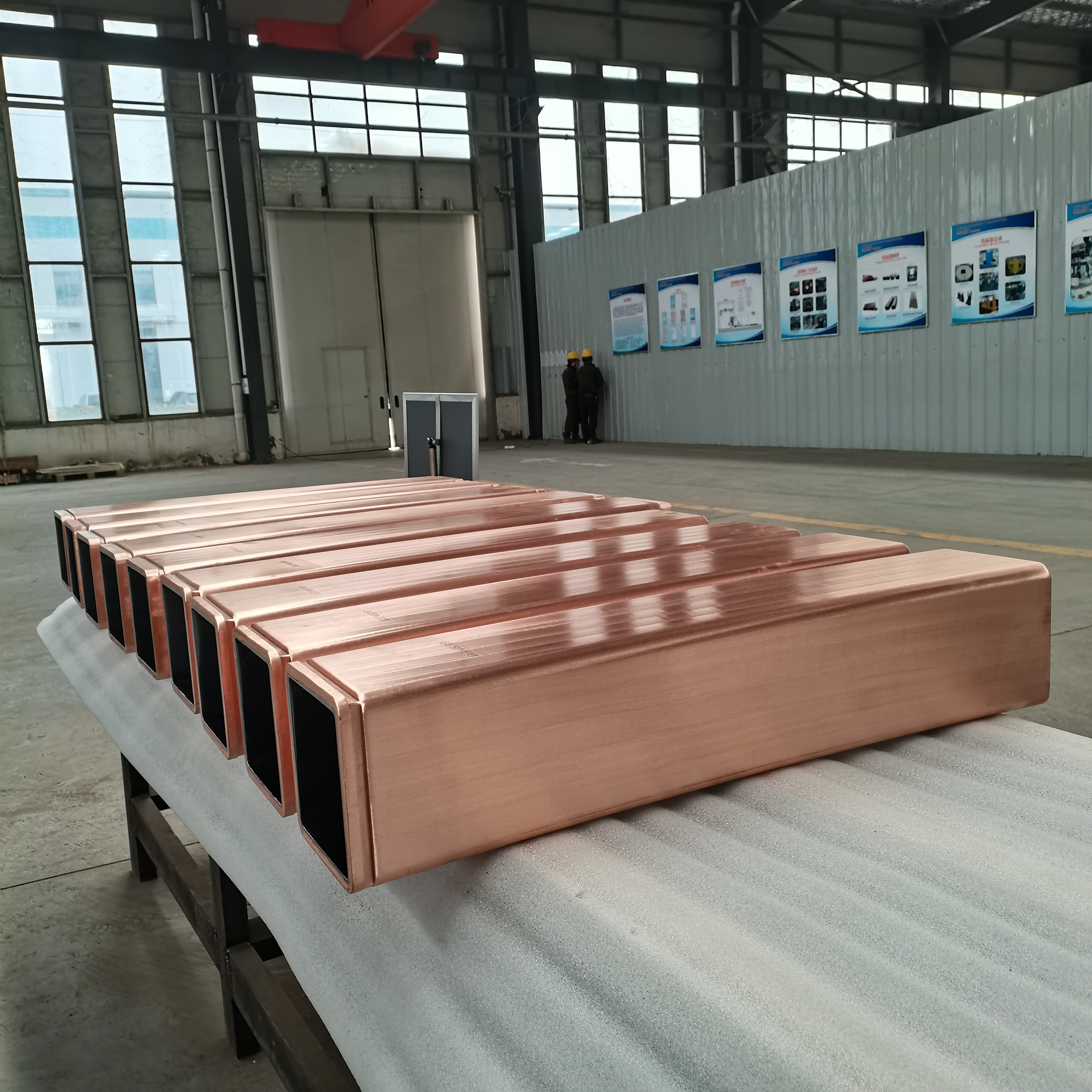

Square R9-140X140mm Copper Mould Tube Continuous Casting Machine Spare Parts

Product features

1, Our company has designed the maximum heat transfer rate from the meniscus to the bottom of the copper tube.

2, Our company can design the best internal geometry for customers according to the actual situation of steel making, and ensure better use effect and competitive cost performance.

3, Our company electroplating using the most advanced technology in Europe, can ensure that the plating solution is uniformly attached to the inner surface of the copper tube.

Parameters

Copper Mold Tube	Size	Thickness (mm)	Length (mm)	Radius (mm)	Design or Taylor-Made ODM & OEM
Billet Square Copper Mold Tubes	50x50 - 680x680mm	6 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement
Bloom Rectangle Copper Mould Tubes	50x50 - 680x680mm	10 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement
Slab Copper Mold Tube	50x50 - 680x680mm	6 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement
Beam Blank Mould Tube	550-150 x 120-70mm	12 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement
Round Mould Tubes	φ110 - φ1850mm	10 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement
Non-Standard Copper Mold Tube	550-150 x 120-70mm	12 - 80	600 - 1250	3000 - 17500 or straight	As your drawing and requirement

Application

The copper mould tube is widely used in steel continuous casting machines. The main function of copper mould tube is to solidify the molten steel to the required size and shape.

140X140mm Copper Square Tube Sizes

FAQ

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?

A2. Our products are high quality and low price.

Q3. Any other good service your company can provide?

A3. Yes,we can provide good after-sale and fast delivery.

Q4. When is the fastest delivery time?

A4. Depends on product type and quantity.
